Laser Particle Size Distribution Analyzer

1.Introduction

Laser Particle Size Distribution Analysis is a technique used to determine the size distribution of particles in a sample by measuring how they scatter laser light. When a laser beam interacts with particles, the light is scattered at various angles, and the intensity of this scattering is analyzed to infer particle sizes. This method is effective for a wide range of particle sizes, from nanometers to millimeters, and is commonly used in industries such as pharmaceuticals, food, and materials science.

2.Advantages

High Precision and Accuracy. Wide Range of Sizes: from nanometers to millimeters. Fast Analysis: deliver results quickly, often within minutes. Non-Destructive Testing.

3.Principle

The principle of Laser Particle Size Distribution Analysis is based on the phenomenon of light scattering. Here’s a breakdown of how it works: 1. Laser Beam Interaction A laser beam is directed through a sample containing particles. As the light passes through, particles in the sample scatter the laser light in different directions. 2. Scattering Mechanism The amount and angle of light scattered depend on the size of the particles: Smaller particles scatter light at larger angles. Larger particles scatter light at smaller angles. 3. Detection of Scattered Light A series of detectors positioned at various angles around the sample collects the scattered light. The intensity of the scattered light at each angle is measured. 4. Mathematical Analysis The collected data is analyzed using mathematical models, typically based on Mie theory or Fraunhofer diffraction, to relate the intensity and angle of scattered light to particle size. 5.Particle Size Distribution Calculation The analyzer calculates the particle size distribution by converting the scattering data into a size distribution curve, which shows the percentage of particles at different sizes.

1.What is a Laser Particle Size Distribution Analyzer?

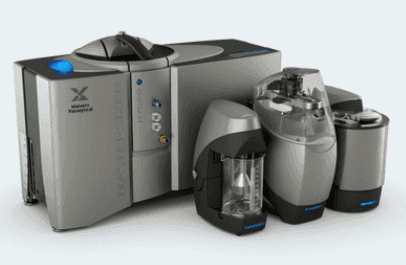

A Laser Particle Size Distribution Analyzer is an instrument that measures the size distribution of particles in a sample using laser diffraction technology.

2.What types of samples can be analyzed?

The analyzer can handle various samples, including powders, suspensions, and emulsions, as long as they are well-dispersed and within the specified particle size range.

3.What is the typical particle size range that can be measured?

Most analyzers can measure particles ranging from nanometers to millimeters, depending on the specific model and settings.

4.How does the analyzer work?

It works by directing a laser beam through the sample. Particles scatter the light, and the intensity and angle of the scattered light are analyzed to determine particle sizes.

5.What are D10, D50, and D90 values?

These values represent specific percentiles in the particle size distribution: D10 is the size below which 10% of particles fall, D50 is the median size, and D90 is the size below which 90% of particles fall.

6.Why is particle size distribution important?

Particle size affects various properties, including flowability, reactivity, and stability, making it crucial for quality control and product performance in many industries.

7.How long does the analysis take?

Analysis time can vary, but most laser particle size analyzers provide results within a few minutes.

8.What industries commonly use this technology?

Industries such as pharmaceuticals, food and beverage, chemicals, and materials science frequently use laser particle size distribution analyzers for quality control and research.

A Laser Particle Size Distribution Analyzer can provide several valuable solutions across various applications: Quality Control: ensure the products meet specified particle size requirements, which is crucial for consistency in manufacturing processes, especially in pharmaceuticals and food industries. Process Optimization: optimize processes such as milling, mixing, and granulation. Material Characterization: provides detailed insights into the physical properties of materials. R&D Support: assists in formulating new products by providing data on how changes in particle size affect performance and stability. Environmental Monitoring: analyze particulate matter in air or water samples, contributing to pollution control and compliance with environmental regulations.

https://www.youtube.com/watch?v=yqe2C6-Bkz8

To ensure reliable results, please follow these/mple guidelines: Sample Type: powders, suspensions, and emulsions. Particle Size Range: spans from nanometers to millimeters. Dispersion: well-dispersed to avoid agglomeration. Dispersants or sonication is used to achieve a uniform distribution. Moisture Content: dried or analyzed in a controlled environment if moisture is present. pH and Chemical Composition: non-destructive to the equipment. Volumn: 10mL.
