Micro/Nano CT (computed tomography) is an advanced non-destructive 3D imaging technique that enables high-resolution reconstruction of internal microstructures in materials. Compared to traditional microscopy or destructive sectioning methods, Micro/Nano CT provides clear, intuitive internal structure images without damaging the sample. It is widely used in material science, life sciences, and industrial engineering.

Micro/Nano CT (micro/nano computed tomography) is an advanced non-destructive 3D imaging technique that enables high-resolution reconstruction of internal microstructures in materials. Compared to traditional microscopy or destructive sectioning methods, Micro/Nano CT provides clear, intuitive internal structure images without damaging the sample. It is widely used in material science, life sciences, and industrial engineering.

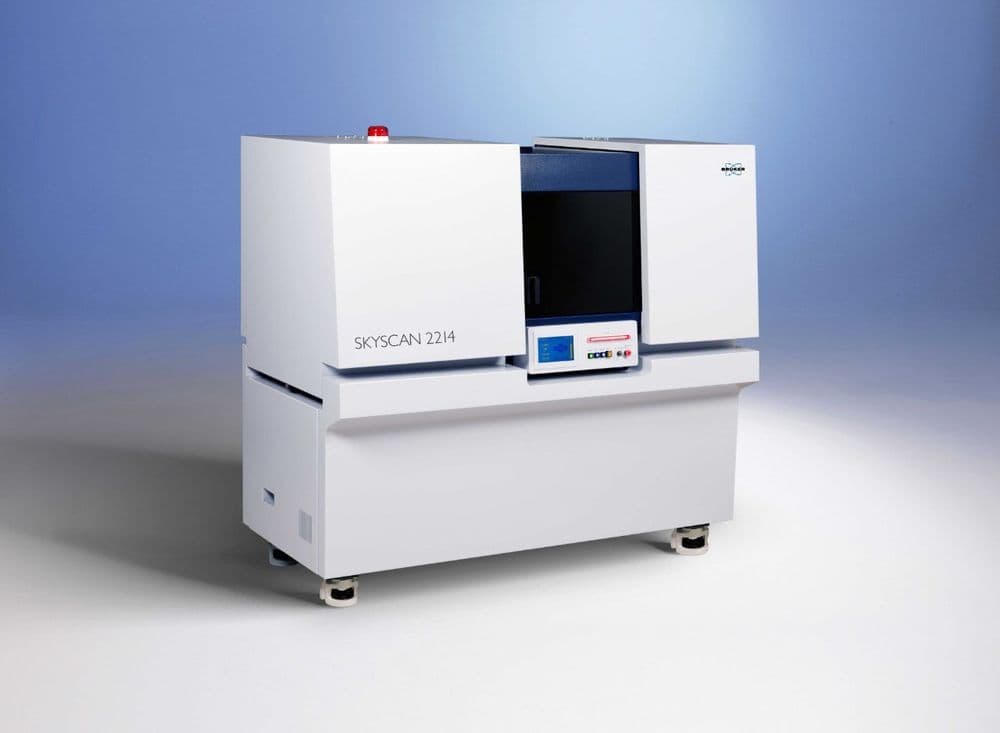

Micro/Nano CT is based on the principle of differential X-ray absorption imaging. 3D reconstruction is achieved by capturing X-ray projections from multiple angles:

Our Micro/Nano CT analysis service typically includes the following steps:
Micro-CT can achieve ~1 μm; Nano-CT can reach 50 nm depending on sample size and material.
Standard scans take 1–3 hours; complex or high-resolution scans may take longer.
Yes, but they need to be dehydrated or treated with contrast agents.
Yes, STL files and mp4 animation clips can be included with the report.

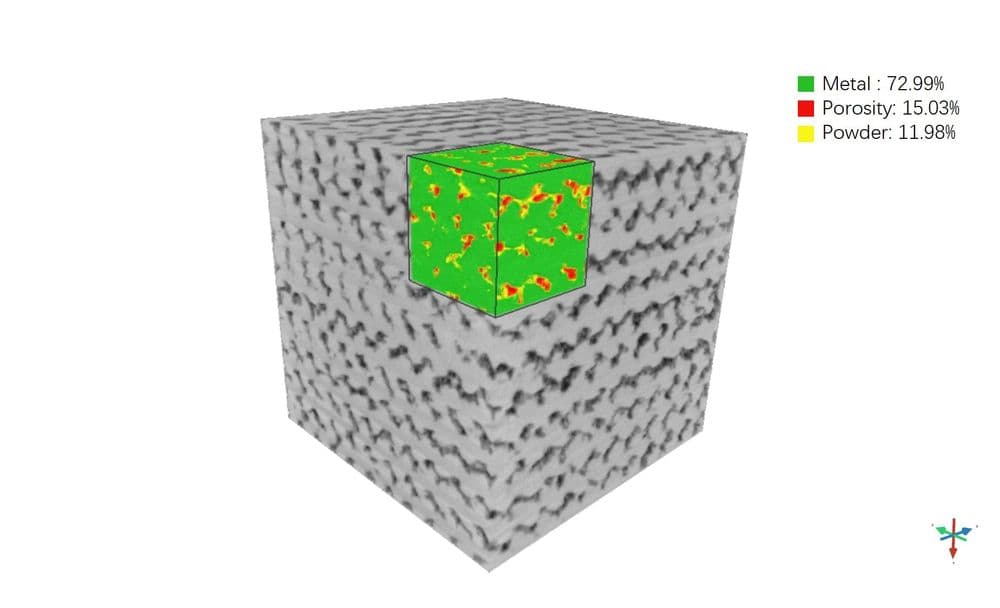

Micro/Nano CT is applicable to a wide range of materials and product 3D structure analyses, including but not limited to:

This picture shows a tomographic slice from a nanoCT of an SD-card, performed with the NanoTube N1 60 kV (top image) and the NanoTube N2 60 kV (bottom image) – achieving a voxel sampling of 200nm.

3D rendering of the phase-contrast Nano-CT of a basalt sample, revealing the different phases, elements and structures help geologists to further understand this sample. Voxel sampling 350 nm.
| Feature | Micro CT | Nano CT |
|---|---|---|
| Spatial resolution | High (typically 1–10 μm) | Ultra-high (up to 50 nm) |
| Suitable sample size | Up to several centimeters | Usually ≤ 5 mm |
| Non-destructive | Sample remains intact | Sample remains intact (smaller sample required) |
| Material applicability | Metals, ceramics, polymers, composites | High-contrast, small-sized samples |
| Typical applications | Industrial parts, porosity, uniformity | Nano-structures, microelectronics, bio tissues |
| Scan time | Moderate (30 min – 2 hours) | Longer (2–4 hours) |
| Image processing | Standard reconstruction workflow | Advanced noise reduction and enhancement needed |
| Cost | Relatively lower | Relatively higher |
| Limitations | Resolution insufficient for nanoscale | Higher requirements for sample prep and density |
| Technique | 3D Imaging | Non-destructive | Resolution | Sample Size Range | Quantitative Analysis |
|---|

To ensure image quality and scan efficiency, please follow these sample guidelines:
For more details, contact Universallab for a sample preparation guide.
| Limitations |
|---|
| Micro CT | Yes | Yes | 1–10 μm | Medium to large (≤ a few cm) | Yes | Lower than nanoscale resolution |
| Nano CT | Yes | Yes | Up to 50 nm | Small (≤5 mm) | Yes | Requires small, specific samples |
| SEM | No (2D) | Sometimes | ≤10 nm | Local regions | Limited | 2D only, coating often required |
| Optical Microscopy | No (2D) | Yes | ~0.5 μm | Wide | Limited | Limited depth, surface only |
| Destructive Sectioning | No | No | Varies | Limited by prep methods | Partial | Sample destroyed, hard to reproduce |
